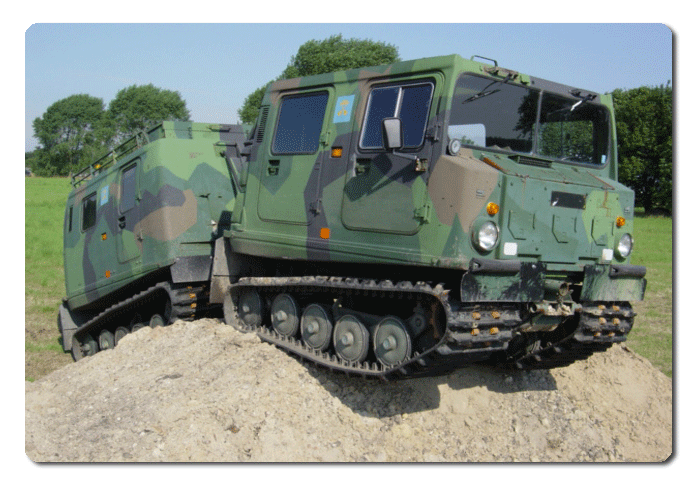

BV 206 – Sweden’s All-Terrain Workhorse
Few vehicles in modern military history combine off-road capability, amphibious performance, and cold-weather endurance quite like the Bandvagn 206, better known as the BV 206. Developed in Sweden during the 1970s, this articulated all-terrain carrier became one of the most versatile and widely exported military vehicles of the Cold War era — and it remains in active service with dozens of armed forces around the world today.
Own a BV 206 Scale Model
At 3DMilprint, we've recreated the iconic BV 206 as a highly detailed 3D-printed scale model — perfect for military vehicle collectors and Swedish Armed Forces enthusiasts.
Free EU shipping. Collector-quality. Built to display.
Origins: Sweden's Answer to Arctic Mobility
By the late 1960s, the Swedish Armed Forces recognized a critical gap in their operational capability: how to move troops, equipment, and supplies across the country's vast expanses of snow, ice, boggy terrain, and dense forest — particularly in the northern regions of Norrland, where conventional wheeled and tracked vehicles consistently failed.
The solution came from Hägglunds & Söner (later Hägglunds, now BAE Systems Hägglunds) based in Örnsköldsvik. Their engineers developed a radical articulated design — two units connected by a steerable joint — that distributed ground pressure so effectively the vehicle could traverse terrain that would swallow conventional tracked vehicles whole. The result was the Bandvagn 206, accepted into Swedish service in 1981.
Technical Specifications: BV 206
| Specification | Details |
|---|---|
| Manufacturer | Hägglunds (BAE Systems Hägglunds) |
| In service | 1981 – present |
| Weight | 4,500 kg (9,920 lb) loaded |
| Length | 6.9 m (22.6 ft) overall |
| Width | 1.87 m (6.1 ft) |
| Height | 2.40 m (7.9 ft) |
| Engine | Ford 2.4L turbodiesel, 136 hp |
| Top speed (land) | 55 km/h (34 mph) |
| Top speed (water) | 4 km/h (2.5 mph) |
| Crew | 1 driver + up to 17 passengers (both units) |
| Payload | ~600 kg front unit / ~1,100 kg rear unit |
| Range | ~320 km |
| Operators | Sweden, UK, Germany, Canada, Finland, Norway + 30 others |
What Makes the BV 206 Unique
The BV 206's genius lies in its articulated two-body design. The front unit houses the engine and driver, while the rear unit carries troops or cargo. The two are connected by a hydraulic steering joint that allows each unit to pitch, roll, and yaw independently — meaning the vehicle effectively "flows" over obstacles rather than fighting them.
- Exceptional flotation — fully amphibious, propelled through water by its tracks alone with no preparation required
- Ultra-low ground pressure — at just 0.18 kg/cm², it can traverse deep snow, bogs, and soft ground that would immobilize any conventional vehicle
- Arctic-rated operation — designed to operate in temperatures as low as -46°C (-51°F)
- Simple maintenance — the straightforward mechanical design allows field repairs with minimal tools and training
- Multi-role flexibility — available in troop carrier, ambulance, cargo, command post, and weapons platform configurations
Variants and Configurations
- BV 206 (standard) — the original troop carrier with an enclosed rear unit seating up to 11 soldiers
- BV 206 Ambulance — rear unit configured for casualty evacuation with stretcher mounts
- BV 206 Command — fitted with enhanced communications equipment for command and control roles
- BV 206S — armored variant with steel armor protection, used extensively by British forces in the Balkans and Afghanistan
- BvS 10 — the next-generation successor, featuring improved armor, power, and payload while retaining the proven articulated concept
The BV 206 in Swedish Military Service
In the Swedish Armed Forces (Försvarsmakten), the BV 206 became the workhorse of northern operations. Swedish conscripts training in Norrland relied on it for everything from troop transport and resupply to casualty evacuation across frozen lakes and through dense taiga.
Its performance during Swedish winter exercises became legendary. Stories circulated of BV 206s crossing lake ice that helicopters wouldn't dare land on, and traversing bogs that had swallowed larger vehicles. Its reliability in extreme cold earned it a devoted following among the soldiers who depended on it.
Global Service: From the Arctic to Afghanistan
- British Army — used extensively in Bosnia, Kosovo, and Afghanistan, particularly valued in mountain terrain where helicopters couldn't always operate
- German Bundeswehr — deployed to Afghanistan with ISAF, where its ability to navigate mountain trails proved critical
- Canadian Forces — used in Arctic sovereignty patrols and northern training operations
- Finnish Defence Forces — a natural fit for Finland's similar terrain and climate challenges
- Norwegian Army — used extensively in high-altitude and Arctic operations
In total, over 11,000 BV 206 vehicles have been produced and operated by more than 40 countries — making it one of the most successful military vehicle exports in Scandinavian history.
BV 206 vs BvS 10: Evolution of an Icon
| Feature | BV 206 | BvS 10 |
|---|---|---|
| In service | 1981 – present | 2005 – present |
| Armor | None (standard) / Steel (206S) | Steel + composite armor |
| Engine | 136 hp turbodiesel | 275 hp turbodiesel |
| Payload (rear) | ~1,100 kg | ~2,500 kg |
| Water speed | 4 km/h | 5 km/h |
| Design concept | Lightweight, minimal ground pressure | Protected mobility, higher payload |
| Primary users | Sweden, UK, Germany, Canada, Finland | Sweden, UK, Netherlands, France |
Frequently Asked Questions
What is the BV 206?
The BV 206 (Bandvagn 206) is a Swedish-designed articulated all-terrain carrier developed by Hägglunds. It is fully amphibious, arctic-rated, and capable of traversing snow, ice, bogs, and soft terrain that defeats conventional vehicles. It has been in service since 1981 with over 40 nations.
Is the BV 206 still in service?
Yes — the BV 206 remains in active service with numerous armed forces including Sweden, the UK, Germany, Canada, and Finland. While the newer BvS 10 has taken over many roles, the BV 206 continues to serve in reserve, training, and specialist roles worldwide.
What countries use the BV 206?
Over 40 countries have operated the BV 206, including Sweden, the United Kingdom, Germany, Canada, Finland, Norway, and the Netherlands. More than 11,000 units have been produced, making it one of the most exported Scandinavian military vehicles in history.
What is the difference between the BV 206 and BvS 10?
The BvS 10 is the next-generation successor to the BV 206. It retains the articulated two-body design but adds significantly more armor protection, a more powerful engine (275 hp vs 136 hp), and greater payload capacity. The BV 206 remains lighter with lower ground pressure, making it better suited for extreme soft-terrain operations.
Can I buy a BV 206 scale model?
Yes — 3DMilprint offers a detailed 3D-printed scale model of the BV 206, ideal for collectors and military history enthusiasts. Shop the BV 206 model here.
